Protherm 9800
In the next phase of plant management development, PT9800 has evolved to QMULUS, an IIoT platform, inheriting its legacy while expanding capabilities to new heights. The proven and well-known functionalities of PT9800 are now an integral part of QMULUS, offering extended functionalities for enhanced efficiency and decision-making. Beyond familiar features like real-time monitoring, production logs, chart recorders, remote access, and control, newly enhanced functionalities such as recipe management and shop layout contribute to an adaptive operational environment. Comprehensive dashboard views of digital and analog points, operations, maintenance, and performance enable a better understanding of processes and provide a holistic view of operational assets. Thorough statistics on alarms, consumption, utilization, and historical trends empower users with valuable insights for strategic decision-making. With these scalable features and more, businesses can future-proof their operations while maximizing productivity and competitiveness.
Explore the all new QMULUS, the successor of Protherm 9800 to unlock the full potential of your heat treatment operations.
FEATURES & BENEFITS

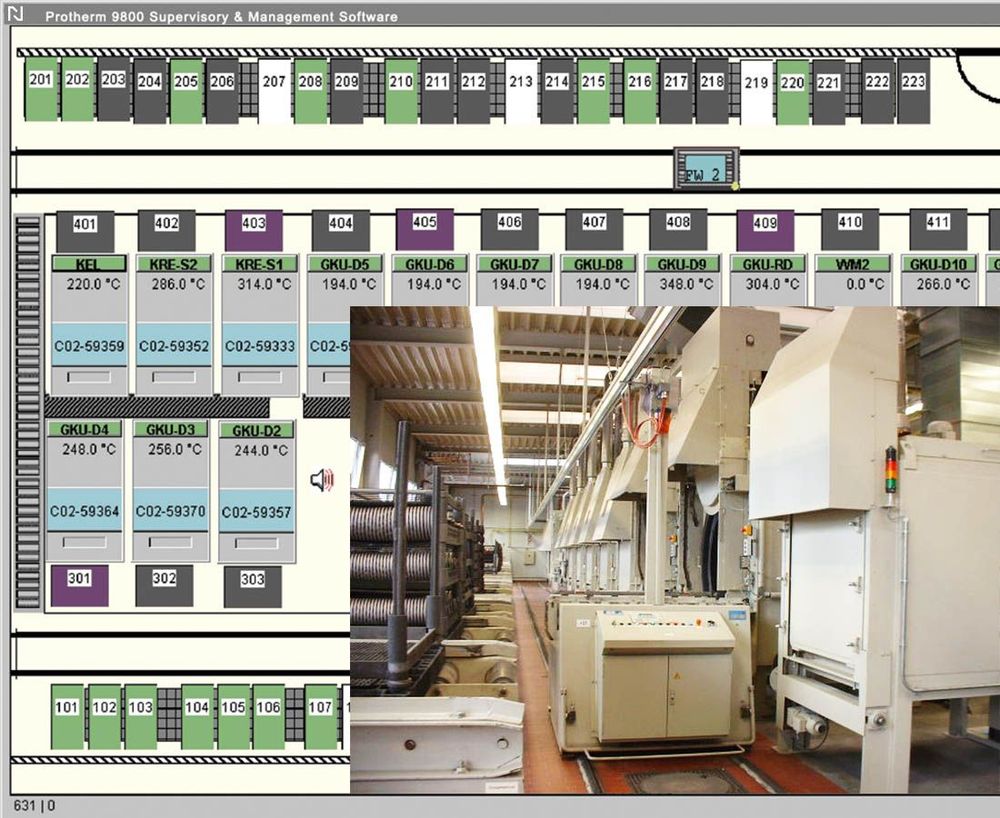

Highly detailed visual displays of all connected furnaces and other equipment
Scalable set of functions ranging from preparation, process control and quality control with the ability to integrate into resource and planning systems
Module for fully-automated production system
Easily interfaces with existing planning and production systems
Possibility of simulating heat treatments to optimize processes and obtain desired end results
System can easily be operated by anyone with a basic knowledge of Windows® programs
SYSTEM CHARACTERISTICS
The system structure is based on three scalable tiers with add-on modules for specific requirements. The Protherm 9800 Chart Recorder basically offers batch production logs, alarm and event logging. It can be upgraded to the full Protherm 9800 SCADA & Process Control System (PCS) which includes chart recorder features and the recipe interface for various furnaces, internal programmer functions, the Process-Electronic Diffusion Simulation Model, lab reports, maintenance scheduler and more. The SCADA & PCS tier can be further upscaled to the Protherm Manufacturing Execution System (MES) that offers such modules as Equipment Usage Calculation, Outage Documentation, Consumption Evaluation, Part Serial Number Tracking, Load Planning & Tracking System, Lights-out Automation and Statistical Process Control.
Database
Module for storing and accessing materials, treated parts and treatments database
Monitoring of Jobs
Process control through the use of treatments and controllers
Alarms
Real-time monitoring of jobs being processed
Furnace Capacity
Furnace load capacity analysis
Load Sequence/Job Planning
Module for planning optimal load sequences and jobs
Archiving
Archiving of heat treatments (furnace logbook)
Reporting
Reporting of heat treatment processes
User Access Management
Define user access, rights and privileges through password protection
OPTIONAL SOFTWARE MODULES
Quality Control Module
Comprehensive quality control system. Fully configurable.
Utilization Module
Calculation of furnace utilization including statistics on tonnage, down times, occupancy and utilization for a single furnace, group of furnaces, treatment, part or group of parts.
Scheduling Module
Optimization of process scheduling with a graphic display of the planned and measured values, furnace downtime and warnings and errors.
Alarm Notification Module
Transfers alarms to a specified communication device, e.g., phone, mobile, or email.
Remote Service Module
Remote support and system maintenance using a modem, ISDN router or Internet tunnelling.
Integration Module
Integration of customer-specific extensions and modifications. Possibility of incorporating additional equipment such as a PLC and controlling and recording their values.
